　　Common-mode chokes, ring core

　　0.005 … 4.7 mH, 200 … 1000 mA, 60 °C

　　Series/Type: B82790C0/S0

　　Rated voltage 42 V AC/80 V DC

　　Rated inductance 0.005 mH to 4.7 mH

　　Rated current 200 mA to 1000 mA

　　Construction

　　■ Current-compensated ring core double choke

　　■ Ferrite core

　　■ PPS case (UL 94 V-0)

　　■ Bifilar winding (B82790C0)

　　■ Sector winding (B82790S0)

　　Features

　　■ Suitable for reflow soldering

　　■ Qualified to AEC-Q200

　　■ RoHS-compatible

　　Function

　　■ B82790C0:

　　Suppression of asymmetrical interference coupled in on lines,

　　whereas data signals up to some MHz can pass unaffectedly.

　　■ B82790S0:

　　Suppression of asymmetrical and symmetrical interference (by Lstray)

　　coupled in on lines. The high-frequency portions of the symmetrical

　　data signal are decreased so far that EMC problems can be significantly reduced.

　　Applications

　　■ Automotive applications, e.g. CAN bus

　　■ Industrial applications

　　Terminals

　　■ Base material CuSn6

　　■ Layer composition Ni, Sn

　　■ Electro-plated

　　Marking

　　■ Marking on component: Manufacturer, process location (coded),

　　winding method (coded), ordering code (short form),

　　date of manufacture (YWWD)

　　■ Minimum data on reel: Manufacturer, ordering code,

　　L value and tolerance, quantity, date of packing

　　Delivery mode and packing unit

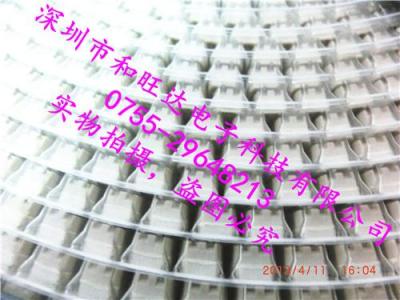

　　■ 16-mm blister tape, wound on 330-mm ? reel

　　■ Packing unit: 1500 pcs./reel
